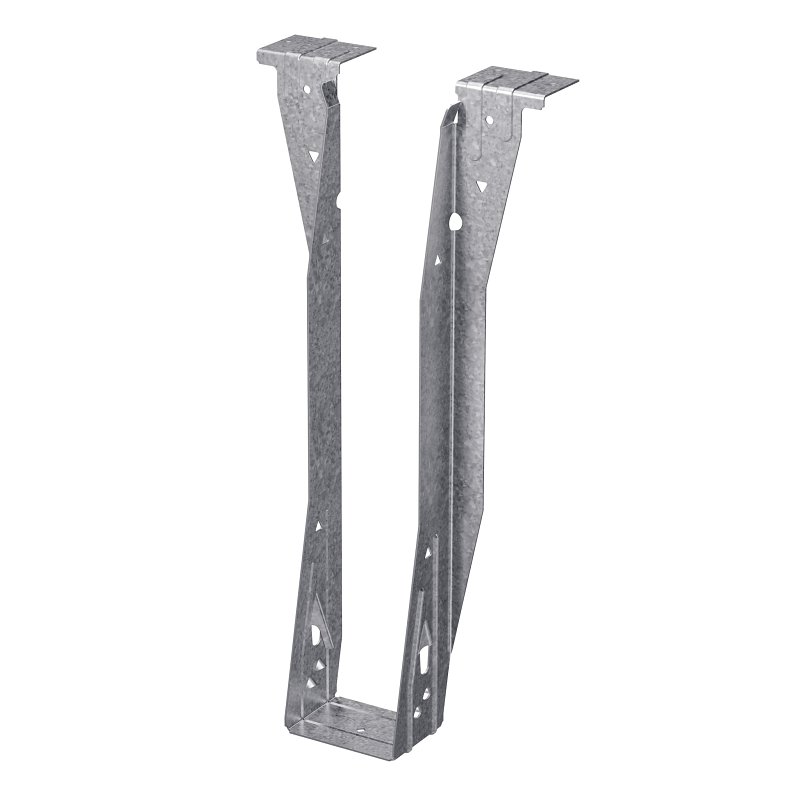

Simpson Strong-Tie ITS ITS2.56/14 Top Flange Hanger, 13-15/16 in H, 2 in D, 2-5/8 in W, 2-1/2 to 2-9/16 x 14 in

Simpson Strong-Tie

Simpson Strong-Tie ITS ITS2.56/14 Top Flange Hanger, 13-15/16 in H, 2 in D, 2-5/8 in W, 2-1/2 to 2-9/16 x 14 in

$7.59$7.59
Simpson Strong-Tie ITS ITS2.56/14 Top Flange Hanger, 13-15/16 in H, 2 in D, 2-5/8 in W, 2-1/2 to 2-9/16 x 14 in
  • Depth: 2 in
  • Fastener Type: Nail
  • Finish: Galvanized/Zinc
  • Material: Steel
  • Size: 2-1/2 to 2-9/16 x 14 in
  • Model #: ITS2.56/14
  • UPC #: 707392996705
  • SKU: 7495146

Your shopping list will be used for pickup in-store

Product Details

The innovative ITS is designed to support 90 deg connections of I-joists to headers. This top-flange hanger features the Strong-Grip™ seat and Funnel Flange™ design allowing standard joist installation without the use of joist nails, resulting in the lowest installed cost.

Key Features

  • The Strong-Grip™ seat firmly secures I-joists with flange thickness from 1-1/8 to 1-1/2 in
  • No joist nailing required for standard I-joist installation without web stiffeners
  • Made from 18 ga steel
  • Galvanized (G90) for extra corrosion resistance
  • Cost-effective hanger that installs quickly with a small number of nails
  • Features additional triangle holes for additional uplift
  • Features optional fastening with PAT for steel applications/header

Item Specifications

Depth2 in
Fastener TypeNail
FinishGalvanized/Zinc
MaterialSteel
Size2-1/2 to 2-9/16 x 14 in
Skew Angle5 deg
Width2-5/8
