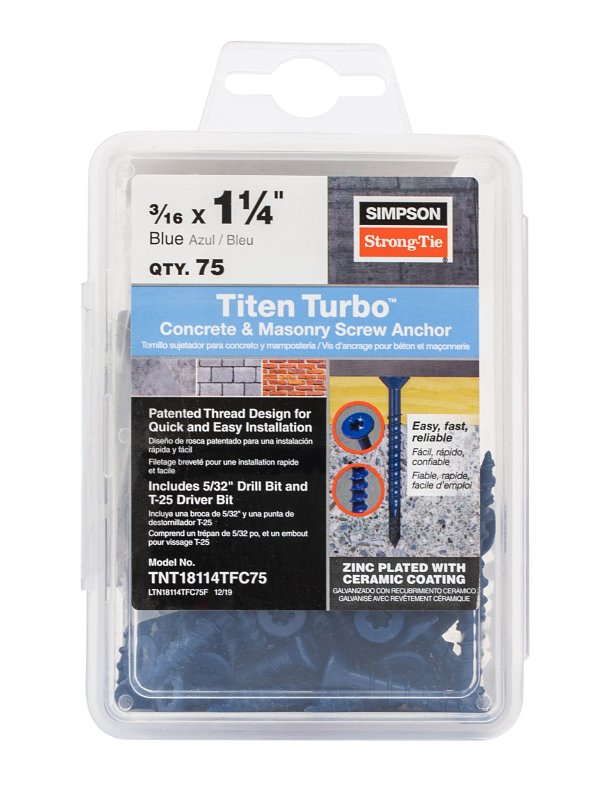

Simpson Strong-Tie Titen Turbo TNT18114TFC75 Screw Anchor, 3/16 in Dia, 1-1/4 in L, Carbon Steel, Zinc Plated

Simpson Strong-Tie

$19.99~~$19.99~~

Color: Standard Blue
Diameter: 3/16 in
Drill Size: 5/32 in
Drive Type: 6-Lobe
Finish: Zinc Plated
Model #: TNT18114TFC75
UPC #: 707392010845
SKU: 7970619

Your shopping list will be used for pickup in-store

Product Details

The Titen Turbo screw anchor features an innovative Torque Reduction Channel to trap drilling dust where it can't obstruct thread action, significantly reducing binding, stripping and snapping without compromising strength. The patented reverse thread design enables smooth driving with less torque while providing great holding power. The Torque Reduction Channel also allows more space for dust to help prevent anchors from bottoming out in smaller-diameter screw holes. The Titen Turbo screw anchors feature a serrated leading edge to cut into concrete or masonry and a pointed tip for fast, easy installation in wood-to-concrete and wood-to-wood anchoring applications.

Key Features

Torque reduction channel that traps dust where it canâ€™t obstruct the thread action, reducing the likelihood of binding in the hole (patent pending)
Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
Serrated screw point for easier starts when fastening wood
Matched-tolerance bit not required, use a standard ANSI drill bit for installation
Zinc plated with a baked-on ceramic coating
Designed for installation with a cordless drill or impact driver
Use in dry interior environments only
6-lobe flat head style for a smooth installed profile (T25 drive bit included)

Item Specifications

Color	Standard Blue
Diameter	3/16 in
Drill Size	5/32 in
Drive Type	6-Lobe
Finish	Zinc Plated
Head Type	Flat
Includes	(1) T25 Drive Bit

Length	1-1/4
Material	Carbon Steel
Minimum Concrete Thickness	3-1/4 in
Minimum Embedment Depth	1-3/4 in
Shear Strength	475 lb
Tensile Strength	125000 psi

MORE DETAILS:

Simpson%20Strong-Tie%202024%20Catalog.pdf
Application: For concrete and masonry applications
Warranty: Limited
